Description
Shipping & Returns

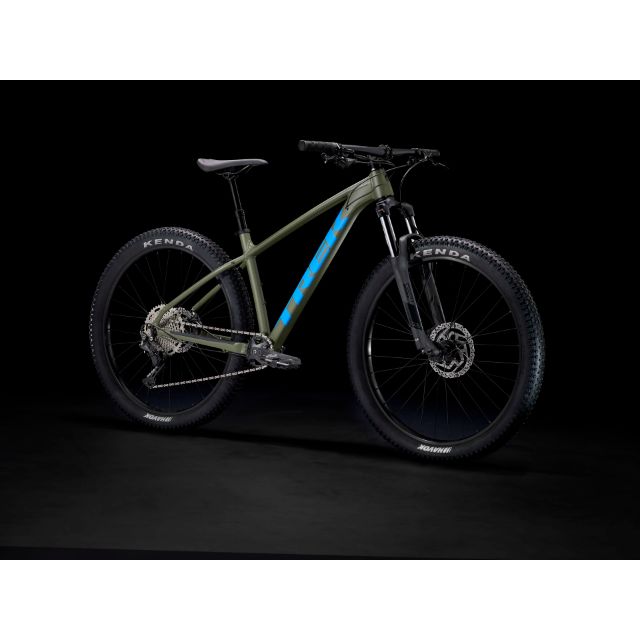

The Roscoe 6 offers newcomers an ideal introduction to mountain biking. It comes with high-traction plus-size tires, a suspension fork that also swallows larger bumps and root carpets, an uncomplicated 1x drive and a playful frame geometry that ensures sovereign controllability on technical trails and winding single trails.
- Color : Olive Green/Blue
- Product Code : 5260203
*Please note - specification applies to all sizes unless otherwise noted
frameset
| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and fender mounts, Boost141, 5mm QR |
|---|---|
| *Fork |
Size: XS SR Suntour XCM 32, coil spring, preload, lockout, 47mm offset, Boost110, 15mm thru axle, 100mm travel |
|
Size: S, M, M/L, L, XL, XXL SR Suntour XCM 32, coil spring, preload adjuster, lockout, 47mm offset, Boost110, 15mm thru axle, 120mm travel | |
| Max compatible fork travel | 120mm, XS: 100mm |
impellers
| VR hub | Formula DC-511, 6-bolt disc mount, Boost110, 15mm thru axle |
|---|---|
| rear hub | Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5mm QR |
| rim | Alex MD35, suitable for tubeless, 32 holes, 35 mm inner width, Presta valve |
| spokes | 14g, stainless steel |
| Tires | Kenda Havok, Wire Bead Core, 30 TPI, 27.5 x 2.80 |
| rim tape | Bontrager TLR |
| Max tire size | Frame: 27.5 x 2.80" or 29 x 2.40", Fork: To the manufacturer |
drive
| shifter | Shimano Deore M4100, 10-speed |
|---|---|
| rear derailleur | Shimano Deore M5120, long cage |
| *Crank |
Size: XS, S FSA Alpha Drive, steel chainring (28T), 170 mm length |
|
Size: M, M/L, L, XL, XXL FSA Alpha Drive, steel chainring (28 teeth), 175 mm length | |
| bottom bracket | Shimano 7420ST, 73mm, threaded cartridge bearing |
| cassette | Shimano Deore M4100, 11-46 teeth, 10-speed |
| Chain | KMC X10, for 10-speed cassette |
| pedal | VP-536, nylon platform |
| Max chainring size | 1x: 32 teeth |
components
| saddle | Bontrager Arvada, steel stays, 138mm width |
|---|---|
| *Seat post |
Size: XS, S, M TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
|
Size: M/L, L, XL, XXL TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length | |
| *Handlebar |
Size: XS Bontrager, alloy, 31.8mm, 15mm rise, 720mm width |
|
Size: S, M, M/L, L, XL, XXL Bontrager, alloy, 31.8mm, 15mm rise, 750mm width | |
| handles | Bontrager XR Trail Comp, nylon clamp |
| *Stem |
Size: XS, S, M Bontrager, alloy, 31.8mm, Blendr compatible, 7 deg, 50mm length |
|
Size: M/L, L, XL, XXL Bontrager, Alloy, 31.8mm, Blendr Compatible, 7 Degree, 60mm Length | |
| tax rate | Semi-integrated cartridge bearing, 1 1/8" top, 1.5" bottom |
| brake | Shimano MT200 hydraulic disc brake |
| *Brake disc |
Size: XS, S, M, M/L, L, XL, XXL Shimano RT26, 6-hole disc mount, 160 mm |
|
Size: M, M/L, L, XL, XXL Shimano RT26, 6-hole disc mount, 180 mm | |
| brake set | Shimano MT200 hydraulic disc brake |
Weight
| Weight | M - 15.88kg / 35.01lbs |
|---|---|
| Max weight | This bike has a maximum weight limit (bike, rider and load) of 136 kg. |
| Size | height of the driver | inseam |
|---|---|---|
| XS |
145-155cm 4'9" - 5'1" |
69-73 cm 27" - 29" |
| S |
155-165cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165-176cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| M/L |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177-188cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89-91 cm 35" - 36" |
| XXL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
Unless otherwise noted, all dimensions are in cm.
| frame size number | frame size letter | wheel size | A — seat tube | B — Seat angle | Effective seat angle | C — head tube length | D — steering angle | E — Effective top tube | F — bottom bracket height | G — bottom bracket drop | H — chainstay length | I — Offset | J— Trail | K — wheelbase | L — standover height | M — frame reach | N — frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5" | XS | 27.5+ | 34.3 | 69.7 degrees | 71.1° | 9 | 67.1° | 55.8 | 31 | 5 | 43.8 | 4.2 | 15.2 | 105.9 | 73.1 | 35.1 | 60.5 |
| 15.5" | S | 27.5+ | 36.8 | 70.2° | 71.2° | 9 | 67.2° | 57.4 | 32 | 4 | 43.8 | 4.2 | 15.2 | 108.1 | 75.4 | 36.4 | 61.4 |
| 17.5" | M | 27.5+ | 41.9 | 69.6 degrees | 70.7 degrees | 9 | 67.2° | 60.9 | 31.9 | 4.1 | 43.8 | 4.2 | 15.1 | 111 | 75.1 | 39.4 | 61.4 |
| 18.5" | ML | 27.5+ | 44.4 | 69.6 degrees | 70.8 degrees | 9 | 67.3° | 62.5 | 31.9 | 4.1 | 43.8 | 4.2 | 15.1 | 112.6 | 74.8 | 41 | 61.5 |
| 19.5" | L | 27.5+ | 47 | 69.7 degrees | 70.8 degrees | 10 | 67.3° | 64.5 | 31.9 | 4.1 | 43.8 | 4.2 | 15.1 | 114.6 | 76.3 | 42.8 | 62.5 |
| 21.5" | XL | 27.5+ | 52.1 | 69.7 degrees | 70.9° | 12 | 67.4° | 66.6 | 8/31 | 4.2 | 43.8 | 4.2 | 15 | 116.8 | 76 | 44.2 | 64.4 |
