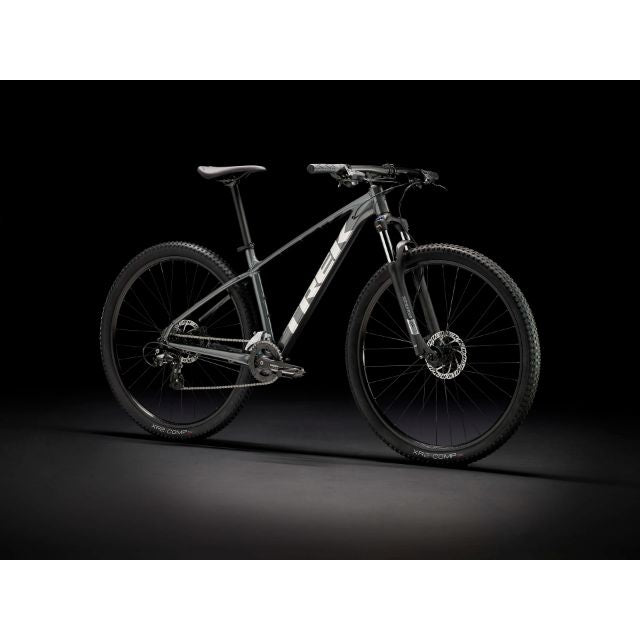

Trek Marlin 5 Gen 2 L 29" Bike Lithium Grey

Name: Trek Marlin 5 Gen 2 L 29" Bike Lithium Grey
Brand: Trek
SKU: IN167688
Price: 655.00 USD
Availability: InStock

$ 655 ~~$ 819~~

20% off

Shipping calculated at checkout.

SKU: IN167688

Estimated delivery: Nov 04 - Nov 08

View details

Description

Shipping & Returns

The Marlin 5 is a versatile mountain bike that masters all adventures - both in everyday life and on the trail - with ease. The suspension fork, 2x8 drivetrain and mounting options for a rack and kickstand make it the ideal choice for trail newcomers and for anyone looking for a comfortable, stable commuter bike that scores with the robustness of a true mountain bike.

Color: Lithium grey
Product Code : 5255581

*Please note - specification applies to all sizes unless otherwise noted

frameset

*Frame	Size: XXS , XS , S Alpha Silver Aluminum, curved top tube, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5 mm QR axle
*Frame	Sizes: M , ML , L , XL , XXL Alpha Silver Aluminum, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5mm QR
*Fork	Size: XXS SR Suntour XCM 30, coil spring, lockout, adjustable spring preload, 100 mm quick release axle, 100 mm travel, 26" wheel
	Size: XXS SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR axle, 100mm travel
	Size: XS SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
	Sizes: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR axle, 100mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle to fork crown, M & larger: 509mm axle to fork crown)

impellers

VR hub	Formula DC-20, alloy, 6-bolt disc mount, 5x100mm QR
rear hub	Formula DC-22, aluminium, 6-bolt disc mount, 8/9/10 freewheel hub by Shimano, 135 x 5 mm QR
HR quick release	152 x 5mm QR axle
rim	Bontrager Connection, double wall rim, 32 holes, 20 mm inner width, Schrader valve
*Tires	Size: XXS Bontrager XR2 Comp, wire bead, 30 TPI, 26 x 2.20
	Size: XS , S Bontrager XR2 Comp, wire bead, 30 TPI, 27.5 x 2.20
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 TPI, 29 x 2.20
Max tire size	Frame: 29 x 2.20" (XS & S: 27.5 x 2.40"), Fork: To the manufacturer

drive

shifter	Shimano Altus M315, 8-speed
derailleur	Shimano Altus M315, 34.9mm clamp diameter, top swing, dual pull
rear derailleur	Shimano Altus M310
*Crank	Size: XXS Prowheel TM-CY10, 36/22, 160mm length
	Size: XS , S , M Shimano M315, 36/22, 170mm length
	Size: ML , L , XL , XXL Shimano M315, 36/22, 175mm length
bottom bracket	Sealed cartridge, 73mm
cassette	Shimano, 8-speed, 12-32 t.
Chain	KMC Z8.3, 8 speeds
Max chainring size	1x/2x: 34 teeth, 3x: 42 teeth

components

saddle	Bontrager Arvada, steel stays, 138mm width
*Seat post	Size: XXS Bontrager Alloy, 31.6mm, 12mm offset, 300mm length
	Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar	Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width
*Handlebar	Size: S , M , ML , L , XL , XXL Bontrager made of aluminum, 31.8 mm, 5 mm rise, 720 mm width
*Stem	Size: XXS Bontrager Aluminum, 31.8mm, Blendr compatible, 7 degree, 35mm length
	Size: XS Bontrager, alloy, 31.8mm, Blendr compatible, 7 deg, 50mm length
	Size: S Bontrager, alloy, 31.8mm, Blendr compatible, 7 degrees, 60mm length
	Size: M Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 70mm length
	Size: ML , L Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 80mm length
	Size: XL , XXL Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 90mm length
tax rate	Semi-integrated, 1 1/8"
brake	Hydraulic disc brake Tektro HD-M275, 180 mm disc diameter
brake set	Hydraulic disc brake Tektro HD-M275, 160 mm disc diameter

Weight

Weight	M - 13.97kg
Max weight	This bike has a maximum weight limit (bike, rider and load) of 136 kg.

Sizeheight of the driverinseamXXS

135-145cm

4'5" - 4'9"

64-68cm

25" - 27"

145-155cm

4'9" - 5'1"

69-73 cm

27" - 29"

155-165cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

165-176cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

M/L

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

177-188cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

188 - 195 cm

6'2" - 6'5"

89-91 cm

35" - 36"

XXL

195 - 203 cm

6'5" - 6'8"

91 - 97 cm

36" - 38"

Unless otherwise noted, all dimensions are in cm.

Sizing table
frame size number	frame size letter	wheel size	A — seat tube	B — Seat angle	Effective seat angle	C — head tube length	D — steering angle	E — Effective top tube	F — bottom bracket height	G — bottom bracket drop	H — chainstay length	I — Offset	J— Trail	K — wheelbase	L — standover height	M — frame reach	N — frame stack
13.5"	XXS	26"	34.3	72.8°	72.8°	9	68.6 degrees	54.6	29	5.2	43.8	4.2	8.9	105.2	65.7	36.9	57
13.5"	XS	27.5"	34.3	73.5 degrees	73.5 degrees	9	69.3°	54.4	29.2	5.8	43.8	4.2	8.8	104.9	65.8	37.6	56.5
15.5"	S	27.5"	36.8	73.5 degrees	73.5 degrees	9	69.3°	55.5	30.2	4.8	43.8	4.2	8.8	106.6	68.6	38.5	57.4
17.5"	M	29"	41.9	71.9°	73.0°	9	69.5 degrees	60.2	31	5.8	43.8	4.2	9.3	110	74.8	41.8	60.2
18.5"	ML	29"	44.4	71.9°	73.0°	9	69.5 degrees	61.8	31	5.8	43.8	4.2	9.3	111.6	75.8	43.4	60.2
