Shop OfferTrek Marlin 4 Gen 2 L 29" Biking Bike Blue

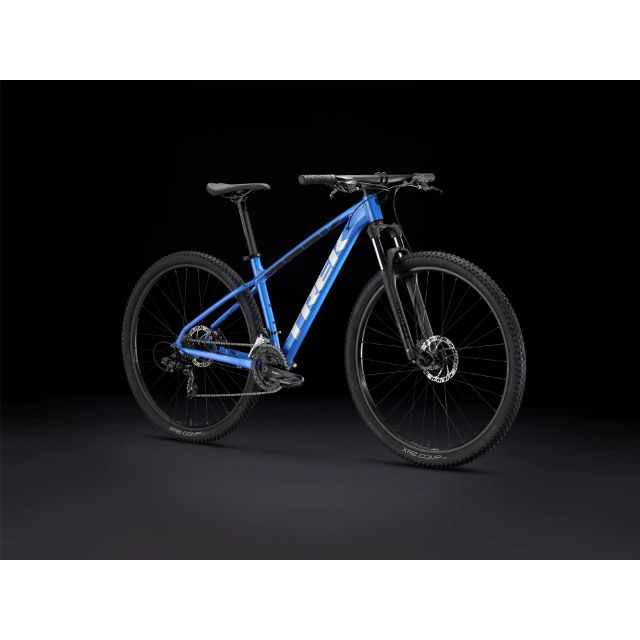

Trek Marlin 4 Gen 2 L 29" Biking Bike Blue
21% Off
Regular price
$ 559
Regular price
$699
Sale price
$559
Unit price
per
Free shipping on orders over $99 TBC
Free online returns
View full details
IN182323
Couldn't load pickup availability
- Color: Blue
- Product Code : 5275338
*Please note - specification applies to all sizes unless otherwise noted
frameset
| *Frame |
Size: XS , S Alpha Silver Aluminum, curved top tube, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5 mm QR axle |
|---|---|
|
Sizes: M , ML , L , XL , XXL Alpha Silver Aluminum, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5mm QR | |
| *Fork |
Size: XS SR Suntour XCE 28, coil spring, preload adjuster, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel |
|
Size: S SR Suntour XCE 28, coil spring, preload adjuster, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel | |
|

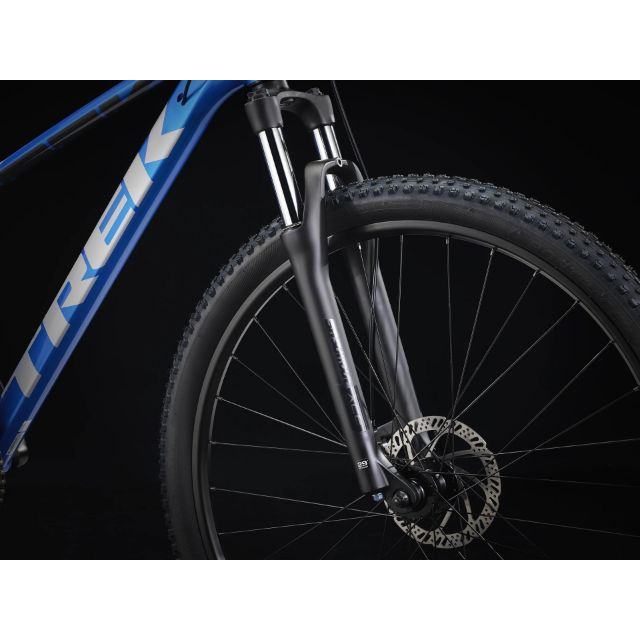

Sizes: M , ML , L , XL , XXL SR Suntour XCE 28, spiral spring, adjustable spring preload, 46 mm offset for 29" wheel, 100 mm quick release axle, 100 mm travel | |
| Max compatible fork travel | 100mm (XS & S: 490mm axle to fork crown, M & larger: 509mm axle to fork crown) |
impellers
| VR hub | Formula DC-20, alloy, 6-bolt disc mount, 5x100mm QR |
|---|---|
| rear hub | Formula DC-31, aluminum, 6-bolt disc mount, 6/7/8 freehub, 135x5 mm QR |
| HR quick release | 152 x 5mm QR axle |
| *Rim |
Sizes: XS , S , M , ML , L , XL , XXL Bontrager Connection, double wall rim, 32 holes, 20 mm inner width, Schrader valve |
|
Sizes: XS , S , M , ML , L , XL , XXL Bontrager Connection, double wall rim, 32 holes, 20 mm inner width, Schrader valve | |
| *Tires |
Size: XS , S Bontrager XR2 Comp, wire bead, 30 TPI, 27.5 x 2.20 |
|

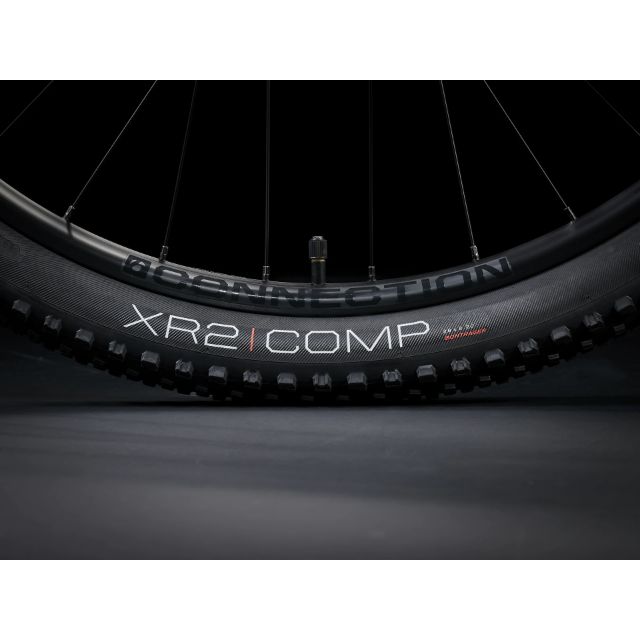

Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 TPI, 29 x 2.20 | |
|
Sizes: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 TPI, 29 x 2.00 | |
| Max tire size | Frame: 29 x 2.20" (XS & S: 27.5 x 2.40"), Fork: To the manufacturer |
drive
| shifter | Shimano Altus EF500, 7-speed |
|---|---|
| derailleur | Shimano Tourney TY300, 34.9mm clamp diameter, down swing, dual pull |

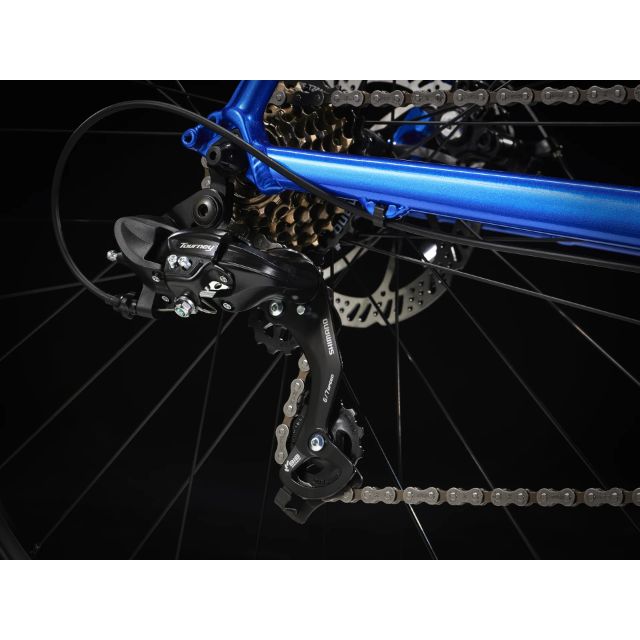

| rear derailleur | Shimano Tourney TY300 |
| *Crank |

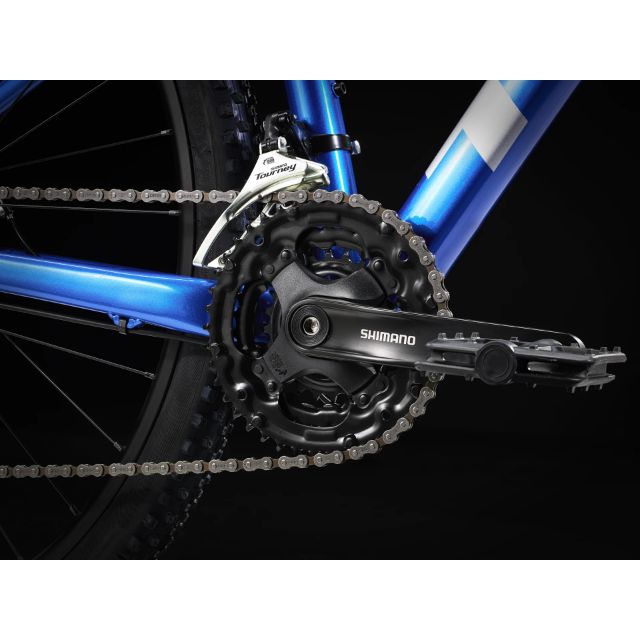

Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170mm length |
|
Size: ML , L , XL , XXL Shimano Tourney TY301, 42/34/24, 175mm length | |
| *Bottom bracket |
Size: XS , S , M , ML , L , XL , XXL VP BC73, 73mm, threaded cartridge bearing |
|
Size: XS , S , M , ML , L , XL , XXL Sealed cartridge, 73mm | |
| cassette | Shimano TZ500, 14-28 teeth, 7-speed |
| Chain | KMC Z7, for 7-speed cassette |
| pedal | VP-536, nylon platform |
| Max chainring size | 1x/2x: 34 teeth, 3x: 42 teeth |
components
| saddle | Bontrager Arvada, steel stays, 138mm width |
|---|---|
| *Seat post |
Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length | |
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
| *Handlebar |
Size: XS , S Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
|
Size: M , ML , L , XL , XXL Bontrager made of aluminum, 31.8 mm, 5 mm rise, 720 mm width | |
| *handles |
Size: XS , S , M , ML , L , XL , XXL Bontrager XR Endurance Comp |
|
Size: XS , S , M , ML , L , XL , XXL Bontrager XR Endurance Comp, screw clamp | |
| *Stem |
Size: XS Bontrager, alloy, 31.8mm, Blendr compatible, 7 deg, 50mm length |
|
Size: S Bontrager, alloy, 31.8mm, Blendr compatible, 7 degrees, 60mm length | |
|
Size: M Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 70mm length | |
|
Size: ML , L Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 80mm length | |
|
Size: XL , XXL Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 90mm length | |
| tax rate | Semi-integrated, 1 1/8" |
| *Brake |

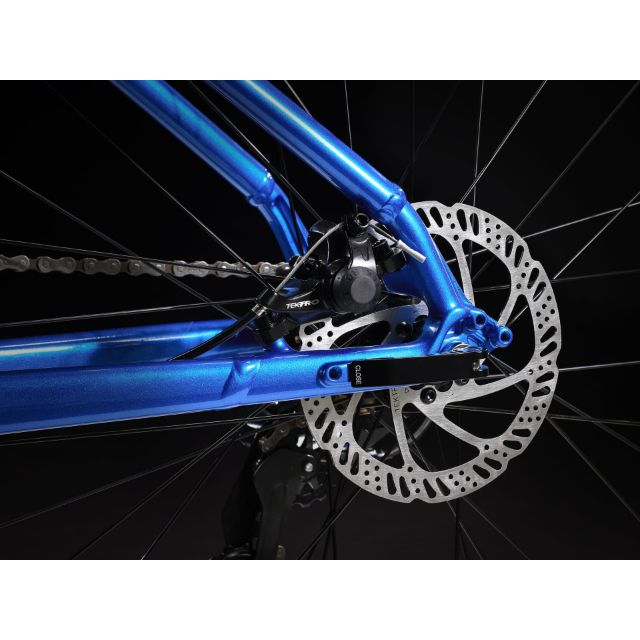

Size: XS , S , M , ML , L , XL , XXL Mechanical disc brake Tektro MD-M280, 160 mm disc diameter |
|
Size: XS , S , M , ML , L , XL , XXL Mechanical disc brake Tektro MD-M281, 160 mm disc diameter |
| Size | height of the driver | inseam |
|---|---|---|
| XS |
145-155cm 4'9" - 5'1" |
69-73 cm 27" - 29" |
| S |
155-165cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165-176cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| M/L |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177-188cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89-91 cm 35" - 36" |
| XXL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
Unless otherwise noted, all dimensions are in cm.
| frame size number | frame size letter | wheel size | A — seat tube | B — Seat angle | Effective seat angle | C — head tube length | D — steering angle | E — Effective top tube | F — bottom bracket height | G — bottom bracket drop | H — chainstay length | I — Offset | J— Trail | K — wheelbase | L — standover height | M — frame reach | N — frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5" | XS | 27.5" | 34.3 | 73.5 degrees | 73.5 degrees | 9 | 69.3° | 54.4 | 29.2 | 5.8 | 43.8 | 4.2 | 8.8 | 104.9 | 65.8 | 37.6 | 56.5 |
| 15.5" | S | 27.5" | 36.8 | 73.5 degrees | 73.5 degrees | 9 | 69.3° | 55.5 | 30.2 | 4.8 | 43.8 | 4.2 | 8.8 | 106.6 | 68.6 | 38.5 | 57.4 |
| 17.5" | M | 29" | 41.9 | 71.9° | 73.0° | 9 | 69.5 degrees | 60.2 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 110 | 74.8 | 41.8 | 60.2 |
| 18.5" | ML | 29" | 44.4 | 71.9° | 73.0° | 9 | 69.5 degrees | 61.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 111.6 | 75.8 | 43.4 | 60.2 |
| 19.5" | L | 29" | 47 | 71.9° | 73.0° | 10 | 69.5 degrees | 63.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 113.7 | 75.7 | 45.1 | 61.1 |
Weight
| Weight | M - 14.40kg |
|---|---|
| Max weight | This bike has a maximum weight limit (bike, rider and load) of 136 kg. |
