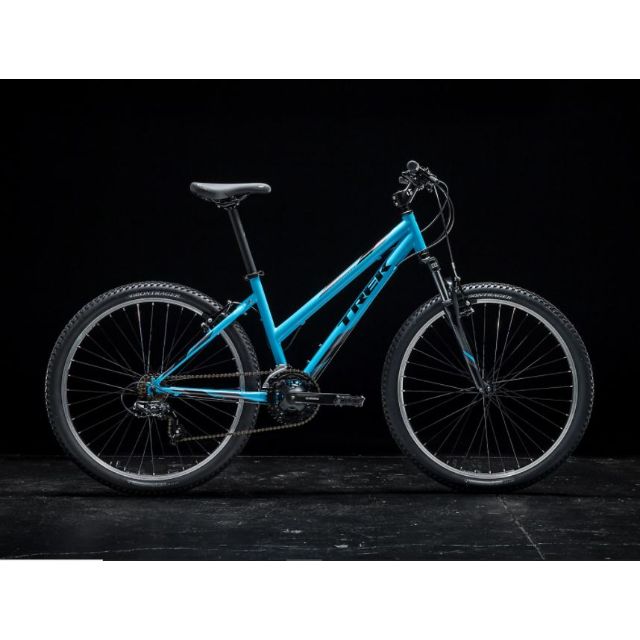

Trek 820 Wsd Women Biking Bike Blue

Trek 820 Wsd Women Biking Bike Blue

21% Off
Regular price $ 471
Regular price $589 Sale price $471
Sale Sold out
Shipping calculated at checkout.
IN103580

820 Women's is an excellent entryway to a world of off-road adventures. It's the most affordable mountain bike in our lineup and the ideal choice for women who are interested in the MTB life but also want a hybrid bike with a confidence-building stepthrough frame and a saddle made specifically for women.

  • Product Code:  532283
  • Color: Blue

Specifications

*spec applies to all sizes unless otherwise noted

Frameset
Frame Trek Custom Steel, rack mounts, 135x5mm QR
Fork SR Suntour M-3030, coil spring, 100x5mm QR, 75mm travel
Max compatible fork travel 75mm
Hub front Formula FM21 alloy, 100x5mm QR
Hub rear Formula FM31 alloy, 7sp freewheel, 135x5mm QR
Rim Bontrager AT-550, alloy, 36-hole, schrader valve
Max tire size Frame: 26x2.00" Fork: See manufacturer
Shifter Shimano Tourney EF41, 7 speed
Front derailleur Shimano Tourney TY500, 31.8mm clamp, top swing, dual pull
Rear derailleur Shimano Tourney TY300, long cage, 34T max cog
Crank Shimano Tourney TY301, 42/34/24, 170mm length
Bottom bracket Sealed cartridge, 73mm
Cassette Shimano TZ500, 14-28, 7 speed
Chain KMC Z7, 7 speed
Pedal VP-536 nylon platform
Saddle Bontrager Sport Women's
*Seatpost Size: XS, S
Bontrager alloy, 29.2mm, 12mm offset, 300mm length
Size: L
Bontrager alloy, 29.2mm, 12mm offset, 330mm length
*Handlebar Size: XS, S
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Size: L
Bontrager alloy, 31.8mm, 15mm rise, 690mm width
Grips Bontrager SSR
*Stem Size: XS
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: S
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: L
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset 1-1/8'' threadless
Brake Tektro alloy linear-pull
Weight M - 15.15 kg / 33.39 lbs (with tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Prices shown are manufacturer's suggested retail prices.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

Sizing & Tech


The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8?, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.


Rider Height

Inseam

XS

147.0 - 155.0 cm

4'9.9"" - 5'1.0""

69.0 - 73.0 cm

27.2"" - 28.7""

S

155.0 - 169.0 cm

5'1.0"" - 5'6.5""

73.0 - 79.0 cm

28.7"" - 31.1""

L

169.0 - 182.0 cm

5'6.5"" - 5'11.7""

79.0 - 85.0 cm

31.1"" - 33.5""


All measurements provided in cm unless otherwise noted.


Frame size number Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height H — Chainstay length I — Offset J — Trail
